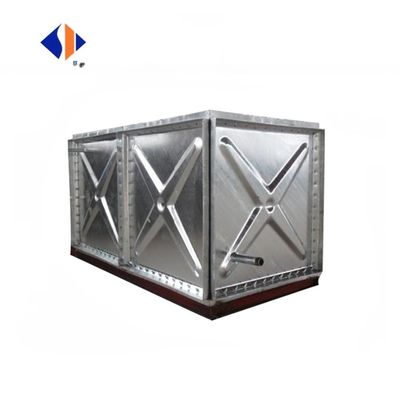

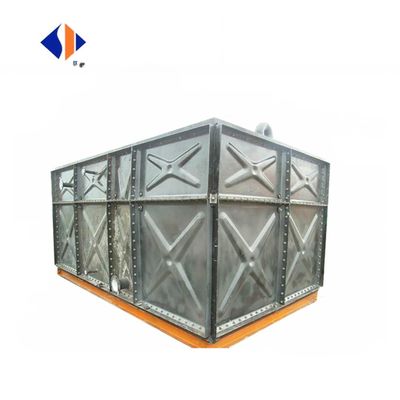

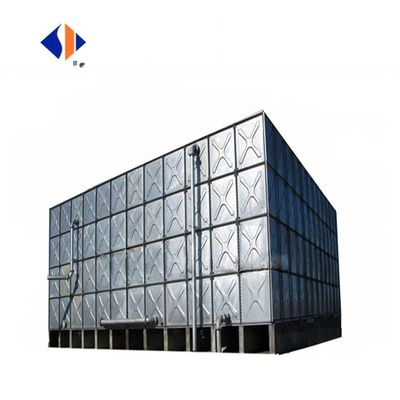

Galvanized Steel Water Storage Tank for Big Capacity B mm 1106-3112 Weight KG 1000

• Product features: depending on connection by screw at site
  1.Galvanized Steel Combined Welding Water Tank is punched by Q235A into 1220mm*1220mm or 1000mm*1000mm and 1000mm*500mm, 500mm*500mm standard plates, drilling around, after HDG treatment, assembly at site. When combined, the gap between two standard plates is sealed by silicon pad, connected by bolts;

2. There are stretches inside of the cabinet;

3. The cabinet dimension is not limited by plates number.The tank can be made into any size according to customer’s  requirements;
4. Anticorrosion: all the cabinet accessories are made of hot dip galvanized;

5. Long service life;
6. The height of the water tank is general controlled at 3m or less;
7. Cabinet light and beautiful: high quality stamping process ensure the maximum pressure need of the tank, reduce the material thickness and meet the beautiful and practical requirements of the tank.

Manufacturing standard:

manufactured according to Design Atlas 02S101 of the State Construction Standard.

Material selection:Q235A

Application:

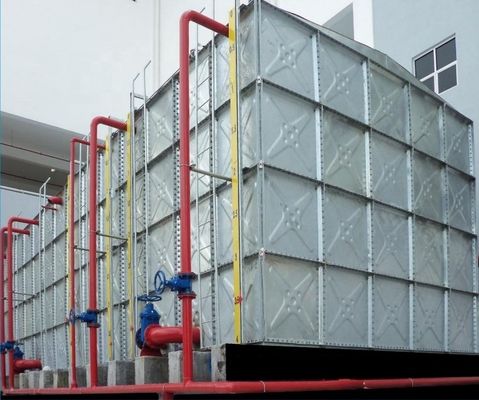

This water tank is widely used in storage and regulation of living water supply & construction water supply, and temporary water storage tanks for expansion of the heating system, condensate tank and construction, geological survey, industry, National defense project etc.

Various industries, civil water supply, HVAC, firefighting, food, beverage, vintage, water treatment, medicine, petroleum, chemical and so on. Taking flexible, reasonable plate design, suitable for all sizes combined water tank.

Suitable for living water with PH value:6.5-8.5, using life:≥20 years
