Product Description

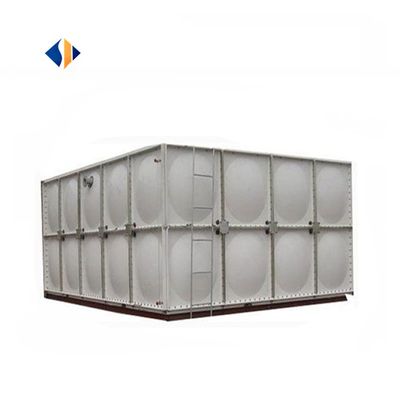

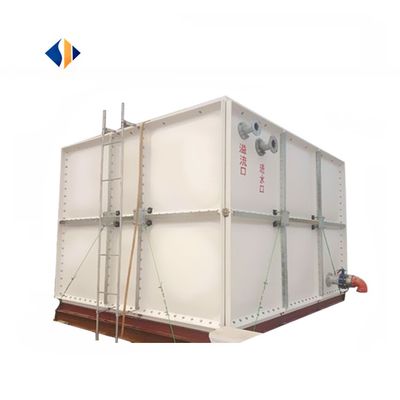

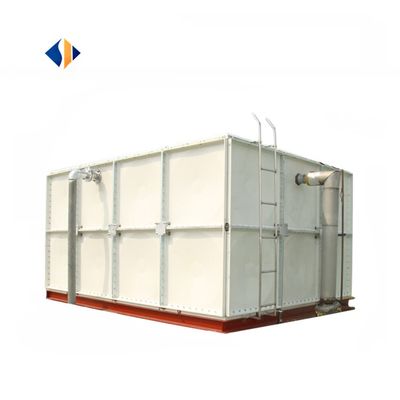

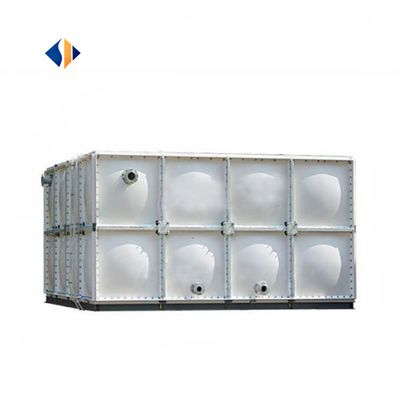

Large Volume Fiberglass Water Tank Manufacturer GRP Water Tank 100m3
SMC Water Tank
It is made of Fiberglass reinforced plastics which is divided in FRP Modular type and SMC combination
type. The major advantage is light weight, anti-rusted, non-leakage, long durable time and easy to clean. It is widely used in
hotel, school,hospital and coal mine enterprise.
Characteristic of SMC water tank
1. It is the water tank of new type adopted in the world presently,and is assembled by wholly good qualitied SMC plates.
2. Food grade resin is adopted,so the quality of water is good and clean ,without pollution, high strength, light weight,
corrosion resistant, nice appearance, long service life ,easy to maintenance etc.
3. It is widely used in mine industry ,enterprises &public institutions,house,hotels, etc. and serves ad the water storage
facility for drinking water,sewage water for treatment ,water for fire distinguish,and other water.
4.we can assemble water tank with volume from 1m3 to 1000m3.if the original water tank needs to be changed,housing
is not needed to be modified ,so it possesses high suitability .sealing belt is especially studied for fixed typed products,
this kind of sealing belt is non-toxic ,water resistant,with high elastic property ,and fastened .Our water tank is with wholly
high strength ,without leakage &deformation ,and is easy to maintenance.
SMC water tank physical and chemical properties
| Project | Performance index |
| Tensile strength (Mpa) | ≥60 |
| Bending strength (Mpa) | ≥100 |
| Bending modulus (Gpa) | ≥7.0 |
| Pap hardness | ≥60 |
| Bibulous rate,% | ≤1.0 |
| Glass fiber content,% | ≥25 |
The FRP Water Tank Plate:
The materials of FRP water tank plate is FRP sheet which food-grade resin. It is made by high temperature, high pressure and mechanical pressing.
(1) In manufacturing process, It adopts to manufacture method that mechanical pressing SO it increase the anti-seismic and shock resistance strength;
(2) In the shape design, there is sag arc in the middle of water tank plate, it improve the bearing capacity of water tank. In addition, it has the 45° and 90° flange so it don’t need to corner fittings.
(3) The specifications of water tank plate have: 1000*1000mm; 1000*500mm, 500*500mm, the thickness of plate has:
5mm,8mm,10mm,12mm,14mm,16mm,18mm and 20mm.( 5mm thickness plate is used for the cover plate), so it can assemble any required capacity water tank.
All water tanks include all the panels, brace, inlet, outlet, drain, overflow flanges, rubber sealing strip and all the accessories.
