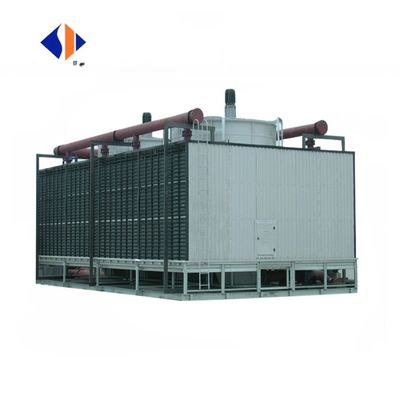

Factory Directly Supply FRP Square Shape Transverse Flow Open Cooling Tower with ISO9001 Certificated
The main introduction of the cooling tower:
Cooling tower is the equipment that use of air contact (directly or indirectly) water to
cooling water.
It take water as circulation coolant, absorb heat from the system and emissions into the
atmosphere, so as to reduce the temperature of the circulating water in the tower, and can
recycled manufacturing cooling water.
The main application of the cross flow cooling tower:
Cooling tower is mainly used in air conditioning cooling system, frozen series, injection
molding, tanning, foaming, power generation, steam turbine, aluminum processing, air
compressor, industrial water cooling, and other fields, used for air conditioning cooling,
refrigeration, plastic chemical industry.
Parameters of the DFH-1000:( the model is from DFH100-DFH1000)

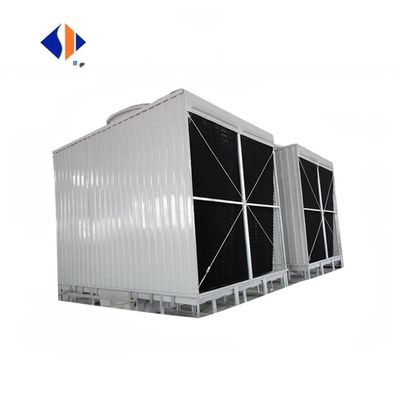

| ITEM (two cells) | Parameters for DFH-1000 |
| DESIGN & OPERATING CONDITIONS: | Cross Flow |
| capacity for one cell: | 500 CMH |
| Dimension W x L x H: | 7920*6160*5220 |
| Hot ( inlet) Water Temp: | 37 Deg |
| Cold ( outler ) Water Temp: | 32 Deg |
| Wet Bulb Temp Inlet: | 28 Deg |
| Drift Loss % of circulating flow M3/hr: | 0.10% |
| Evaporation Loss (at design) M3/hr: | 1.60% |
| Thermal heat load Mill.Kcal/Hr (Total): | 5 |
| Infill: | |

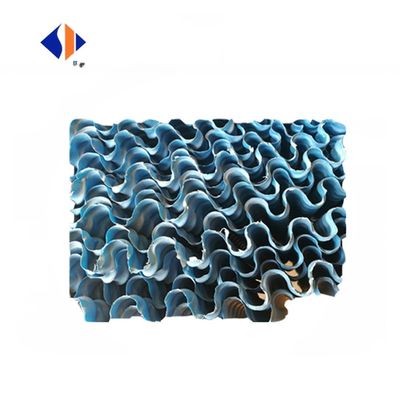

| Fill Media | cooling tower fillings |
| Material | PVC |
| | |
| | |
| Mechanical Equipment Fan: | |
| Manufacturer | Shangyu/Sichuang |
| Blade Material | FRP |
| Diameter (mm) | Ø3400*2 |
| Type of model | Y225M-4 |
| Air delivery per fan ( m3/s) | 780000 |
| Fan Speed (RPM) | 240 |
| Speed Reducer: | |
| Manufacturer | Baoding city propeller Co.Ltd |
| Reduction Ratio | 6.04 |
| | |
| Motor Driver: | |
| Brand | Hengshui motor Co.Ltd |
| Elec. Char.. (phase/cycles/voltage/current) | 380v,50hz, 380V,84.2A |
| Power Rated (KW) | 15kw*2 |
| Fan trunk: | |
| Fan stack material | FRP |
| Make Up Water M3/hr | 1.72% |

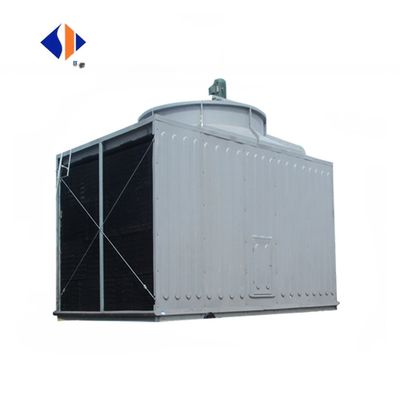

standard cross flow cooling tower
The cooling tower will be packed in the container in the form of parts. When the cooling tower
is bigger than 500 tons/h
The cooling tower also can be packed in the plywood box, this plywood box is reinforced
by the steel frame, so that the box is strong enough for packing the cooling tower.
1) Good seller service for you, familar with the export process, knowing cooling tower well.
2) Professional after sale service team, professional installation team.
Company Information
Shuangyi environment Co., Ltd is a large modern enterprise which integrating science,
industry and trade, mainly produce the FRP cooling tower, fan, water tank, ventilation pipes,
winding pipe and tank, central air conditioning terminal equipment, engineering installation,
pipes, butterfly valve, ball valve, globe valve, and other FRP products,etc.
1) History of Shuangyi Group?
Since 1984. Shuangyi has 30 years experience on produce and design cooling tower.
2) Main products of Shuangyi group?
FRP Cooling tower, Inductrial fan, water tank, etc
3) How many workers?
3000-3500 workers. 100 workers professional produce the cooling tower.
Cooling tower installation team: 10 workers.
Cooling tower selling team: 5 workers.
4) Which size cooling tower do you have?
The smallest cooling tower 12 tons/h.
The biggest cooling tower 4000tons/h

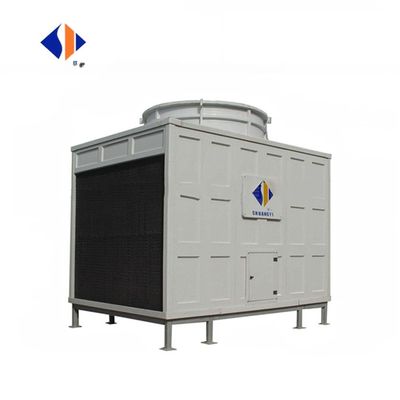

The cooling towers including : round shape cooling tower,square shape cooling tower,
cross flow cooling tower and counter flow cooling tower.
