Stainless Steel Water Tank 10000 Litres
1. Easy to installation:The welding stainless steel water tank adopts to the factory pressing and assembly, welding on spot. Because it is welding inside the water tank, it can be placed on three sides against the wall. It is very important for the client without too much place.
2. No leakage: Stainless steel water tank adopts to the all welding assembly. Compared with the traditional water tank which connection by bolt, it get rid of the sealing strip and bolt to make the water tank more strength and never leakage.
3. Reasonable price: The unique and reasonable appearance design, advanced hydraulic assembly line production process and the biggest utilization rate of material to make the price more competitive.
4. Health: Stainless steel water tank adopts to the fully enclosed way so it can eliminate algal blooms. Its vent has multi-layer dust protection to prevent the dust fall into water tank; unique and advanced water inlet device not only possess the noise reduction function but also prevent the disturbance of the water. In a word, it can eradicate the second pollution completely.
The Selection Table:
|
Model
|
Volume
(m³)
|
Specification Size (mm)
|
Thickness (mm)
|
|
L
|
W
|
H
|
Roof
|
Side plate
|
Floor
|
|
1
|
2
|
3
|
4
|
|
SYB-1
|
1
|
1000
|
1000
|
1000
|
1
|
|
|
|
|
1.5
|
|
SYB-2
|
2
|
2000
|
1000
|
1000
|
1
|
1.5
|
|
|
|
1.5
|
|
SYB-3
|
3
|
3000
|
1000
|
1000
|
1
|
1.5
|
|
|
|
1.5
|
|
SYB-4
|
4
|
2000
|
1000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-6
|
6
|
3000
|
1000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-8
|
8
|
2000
|
2000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-10
|
10
|
2500
|
2000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-12
|
12
|
3000
|
2000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-16
|
16
|
4000
|
2000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-18
|
18
|
3000
|
3000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-20
|
20
|
5000
|
2000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-24
|
24
|
4000
|
3000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-30
|
30
|
5000
|
3000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-36
|
36
|
6000
|
3000
|
2000
|
1
|
2.0
|
1.5
|
|
|
2.0
|
|
SYB-40
|
40
|
5000
|
4000
|
2000
|
1
|
2.0
|
1.5
|
1.5
|
|
2.0
|
|
SYB-45
|
45
|
5000
|
3000
|
3000
|
1
|
2.0
|
1.5
|
1.5
|
|
2.0
|
|
SYB-50
|
50
|
5000
|
5000
|
2000
|
1
|
2.0
|
1.5
|
1.5
|
|
2.0
|

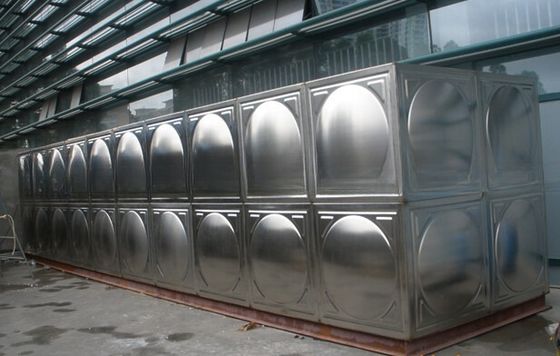

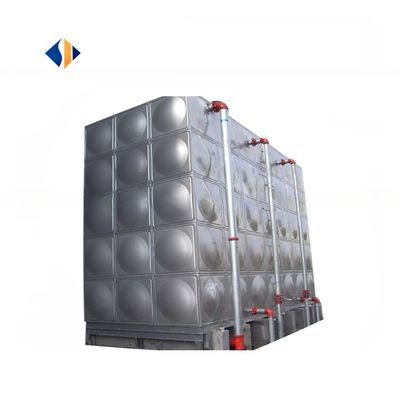

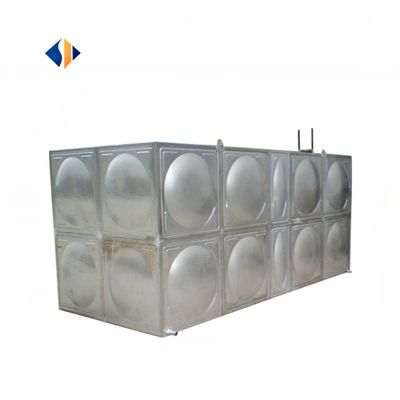

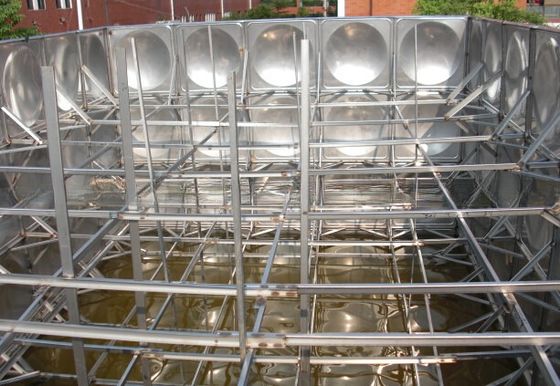

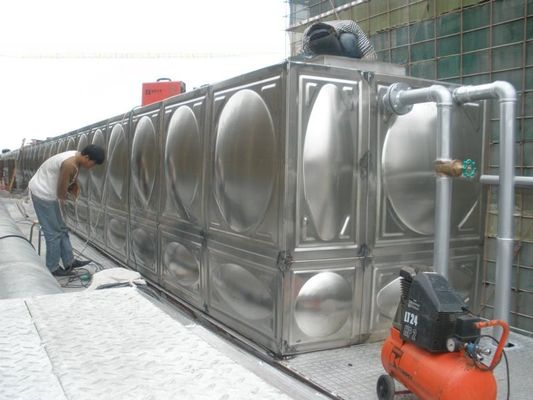

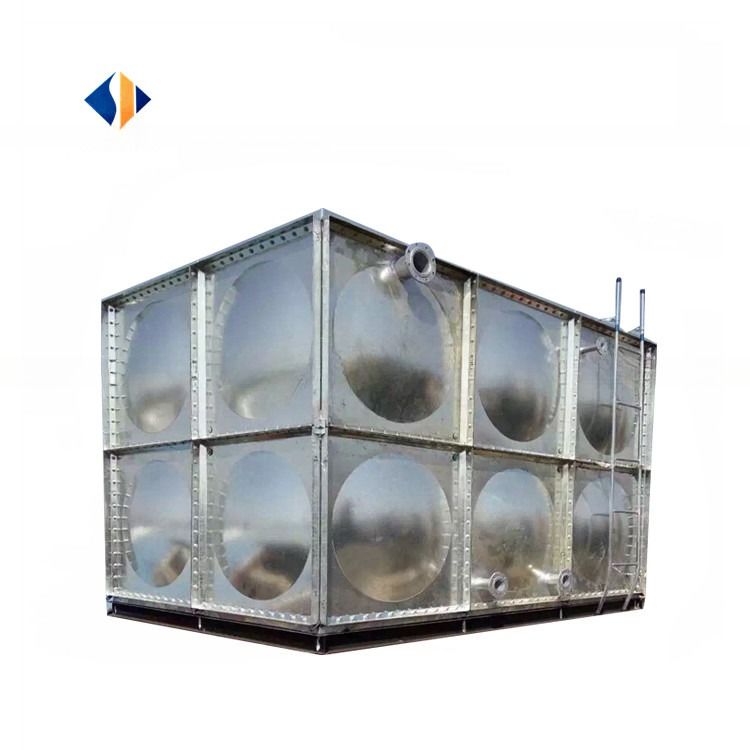

The Pictures:
Main Features:
1. Never rust: It adopts to the import food level SUS stainless steel plate, blocking-up the sunlight irradiation thoroughly, does not multiply the algae, at any time maintains the water quality is clean.
2. Light weight and high strength: The stainless steel plate has light weight and high strength and so on characteristic. It adopts to hydraulic single mode molding so it has the forming good, small internal stress, high precision,no any abrasion on surface and so on characteristic. The yield strength of stainless steel is equivalent to 1.5 times that of carbon steel and 6 times that of GRP. So it show the good performance in anti-seismic, impact resistance and other aspects.
3. Meet fire and building standard act. Compared with the SMC water tank, the stainless steel water tank has the better high temperature resistant performance. So it can apply to the request of fire and building standard act completely.
4. Ideal mechanical structure: This welding stainless steel water tank adopts to the combination of spherical and tablet. This is a ideal mechanical structure to make the water tank possess fluent line and beautiful appearance.
Our Services
1. Warranty: 1 Year warranty for all products.
2. Products Quality: 100% products inspection before delivery.
3. Just in time delivery: Normally, lead time is 10-15 days.
4. Customized Service: As we have our own molding department, customized service can be provided.
5. Prompt Customers Service: TradeManager,Skype or E-mail will be replied in 24 hours.
