High Pressure Centrifugal Fan for Industrial Ventilation FRP/Steel Material Air Flow

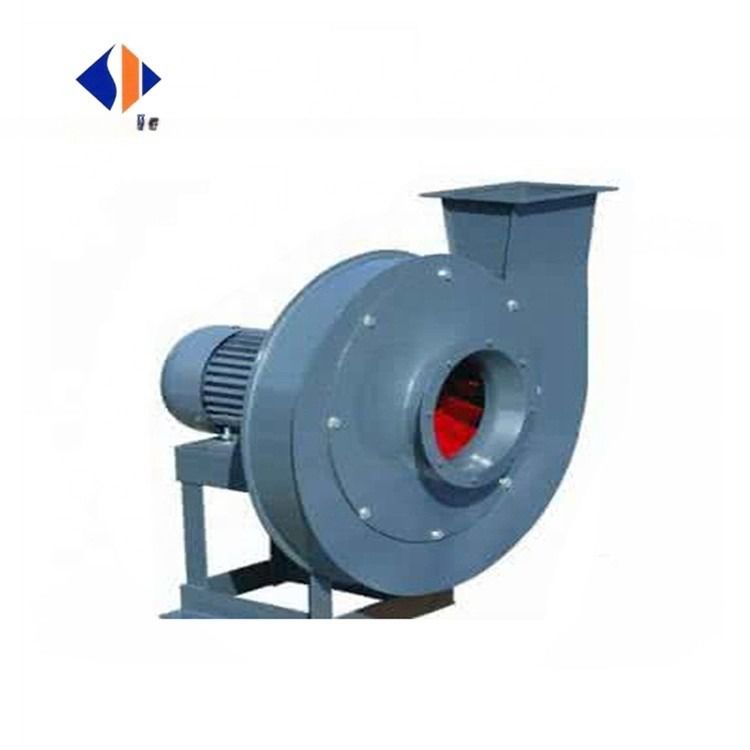

Large Image : High Pressure Centrifugal Fan for Industrial Ventilation FRP/Steel Material Air Flow

Product Details:

Place of Origin:	Shandong, China
Brand Name:	Shuangyi
Certification:	ISO 9001/ISO14001
Model Number:	9-19/9-26

Payment & Shipping Terms:

Minimum Order Quantity:	1 PC
Price:	$1,500.00/sets 5-99 sets
Packaging Details:	Standard export package: Plywood case
Supply Ability:	100 Unit/Units per Week

Contact Now

High Pressure Centrifugal Fan for Industrial Ventilation FRP/Steel Material Air Flow

Description

Type:	Centrifugal Fan, Centrifugal Ventilator	Applicable Industries:	Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining
Electric Current Type:	AC	Blade Material:	FRP/Steel
Mounting:	FREE STANDING	Voltage:	380V,50HZ
Warranty:	1 Year	After-sales Service Provided:	Online Support
Application:	Exhaust Ventilation	Feature:	High Pressure Fan Blower
Material:	FRP/Steel	Motor:	China Top Brand
Size:	Customized	Port:	Qingdao

High pressure Centrifugal fan/air blower/ventilation fan

High Pressure Centrifugal Fan for Industrial Ventilation FRP/Steel Material Air Flow 0

Product Description

Application:

SY19/SY26 centrifugal ventilators are generally used in high-pressure forced ventilation. They are also widely used to deliver non-corrosive, unnatural and non-viscous gas.

Structure:

It consists of motor, cabinet, impeller, bears, transmission group and support frame etc.

1) Impeller: SY19 is with 12 pieces of blades; SY26 is with 16 pieces of blades. Both models’ blades are forward curved. The maximum peripheral speed of the outer edge of the impeller diffuser does not exceed 140m / s. Impellers would be tested for static and dynamic balance to make sure they can run smoothly.

2) Cabinet: welded curved cabinet, can be made of different materials

3) Air Inlet: made into a convergent and streamlined overall structure and is fixed onto the front cover group with bolts.

4) Transmission Group: composed of main shaft, bearing tube and coupling. The main shaft is made of high-quality steel. The overall structure of the axle box uses ball bearings and is lubricated with bearing grease.

High Pressure Centrifugal Fan for Industrial Ventilation FRP/Steel Material Air Flow 3

High Pressure Centrifugal Fan for Industrial Ventilation FRP/Steel Material Air Flow 5
