Air Conditioning Using Fan

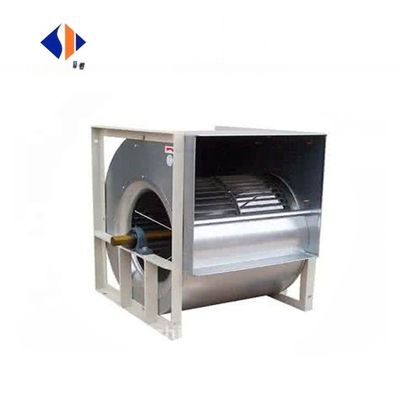

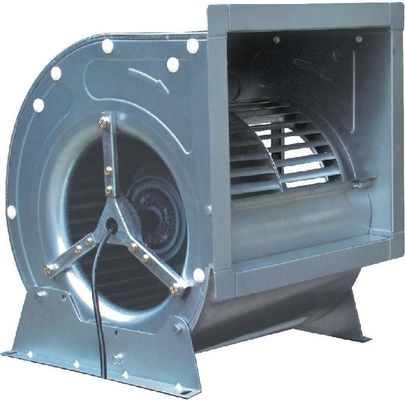

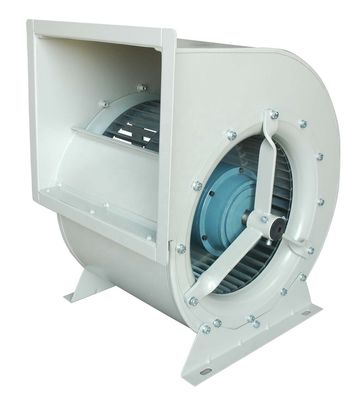

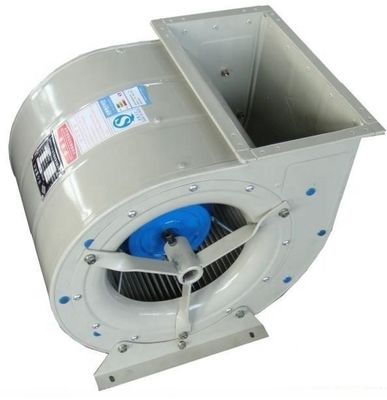

SKT series external-rotor motor AC using Centrifugal Fan
Introduction
The SKT series low noise multi-wing type air conditioning use centrifugal fan, with enlarged blade width and reduced leaf blade quantity, has bigger air volume(capacity). Its rotational speed is lower, and with steady running performance and lower noise. Its structure is compact, thus easy to install and maintain.
1) Rotating ways
It has two rotating ways-- laevogyrate (LG, counterclockwise) and the dextrogyrate (RD, clockwise) .
2) Installs form
It can be installed with 0°, 90°, 180°, 270° four kinds of air outlet directions.
•Optional Parts: flexible coupling, variable inlet vane damper, damper, electric actuator, motor with variable frequency and speed regulation, frequency converter, soft starter for motor;

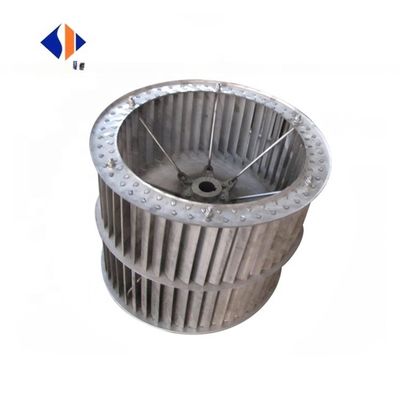

•Impeller is adjusted by the static and dynamic balancing test.
•Backward blades
•Water cooled bearing house
•Oil leak preventing design for bearing house
•Long service life
•Large air volume, low noise, high efficiency
•Easy installation and operation
•Superior service in customized design and production.
Direct Drive Centrifugal Blower Technical Parameter:
Model | Air Volume range | Full press | Power | Noise |
| | | | |
SKT 200S-4 | 600-1500 | 300 | 0.18 | 61 |
| | | | |
SKT 200L-4 | 1300-2100 | 300 | 0.25 | 63 |
| | | | |
SKT 250S-4 | 1900-2400 | 380 | 0.32 | 64 |
| | | | |
SKT 250S-4 | 1900-2500 | 390 | 0.37 | 65 |
| | | | |
SKT 250M-4 | 2500-3100 | 390 | 0.45 | 66 |
| | | | |
SKT 250M-4 | 2500-3300 | 420 | 0.55 | 67 |
| | | | |
SKT 250L-4 | 3300-4300 | 480 | 0.75 | 67 |
| | | | |
SKT 250L-4 | 3300-4400 | 500 | 1.1 | 68 |
