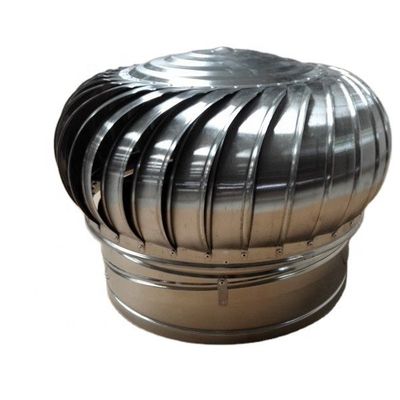

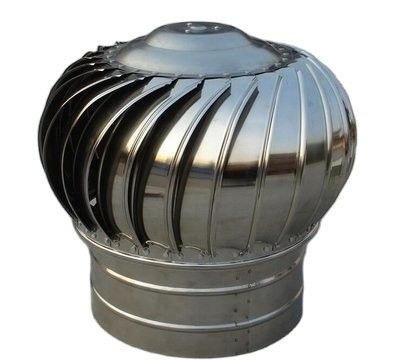

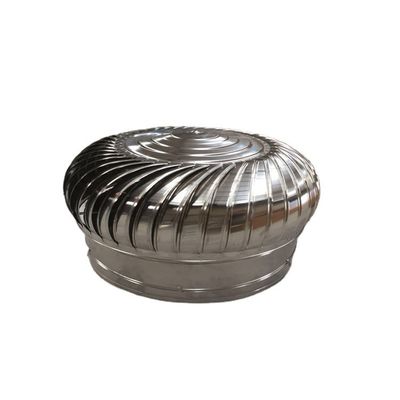

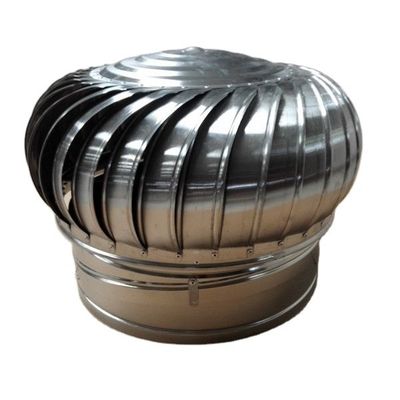

3.6-6.8 Number of the machine Industrial Roof Motorless Ventilation Fan for Chimneys

1. Structure

        1). Material: made of stainless steel by stretching forming, attractive appearance, no rust.

        2). Bearing:whole sealing bearing, which can ensure it operate smoothly and constantly.

•

  3). Special central shaft design, high-class lubricating bearing system: preventing blades



  from deformation at high speed rotation, and extending the service life.



  4). Inside support frame: cast aulumium. Light and anti rust.

• 2.Advantages



  1 YEAR WARRANTY



  1). No Electrical Operating Costs, environmental protection, energy-saving.



  2). No Wiring Costs



  3). Desinged to withstand adverse weather



  3). Low maintenance, long life working.



  4). Low structural impact



  5). Quiet Operation

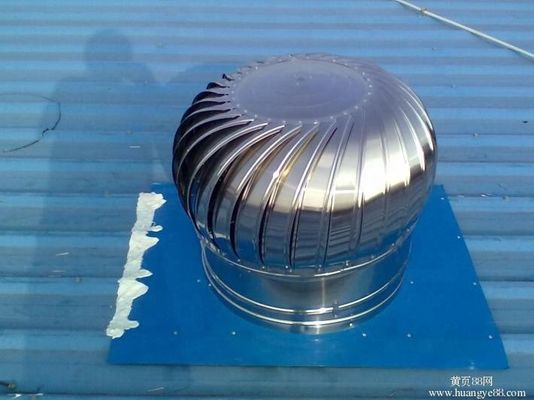

  6). Easy installation and position: suitable for flat and sloped roof



  7). waterproof efficiency reach 100%.



  3.Function



  1). Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.



  2). Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.



  3). Reduce air conditioning load, increasing the cooling effect.



  4. Widely used in these places



  1). Ware house;



  2). Factories and workshops (such as paper mill, galvanized products producing factories,



  painting factories);



  3). Garage and other buildings which need air ventilation.



  5. Technical parameters



  model NO.	Inlet Diameter (mm)	Outlet diameter(mm)	Air speed (m/s)	Air capacity (m/h)	Weight (kg)	Material
  SY-300	300	400	3.4	1280	3.5	Stainless steel
  SY-360	360	460	3.4	1380	4.2	Stainless steel
  SY-400	400	500	3.4	1680	6.2	Stainless steel
  SY-500	500	630	3.4	2520	8.5	Stainless steel
  SY-600	600	730	3.4	3600	11	Stainless steel
  SY-680	680	880	3.4	4500	15	Stainless steel
  SY-800	800	980	3.4	6500	18	Stainless steel
  SY-880	880	1050	3.4	8000	22	Stainless steel
