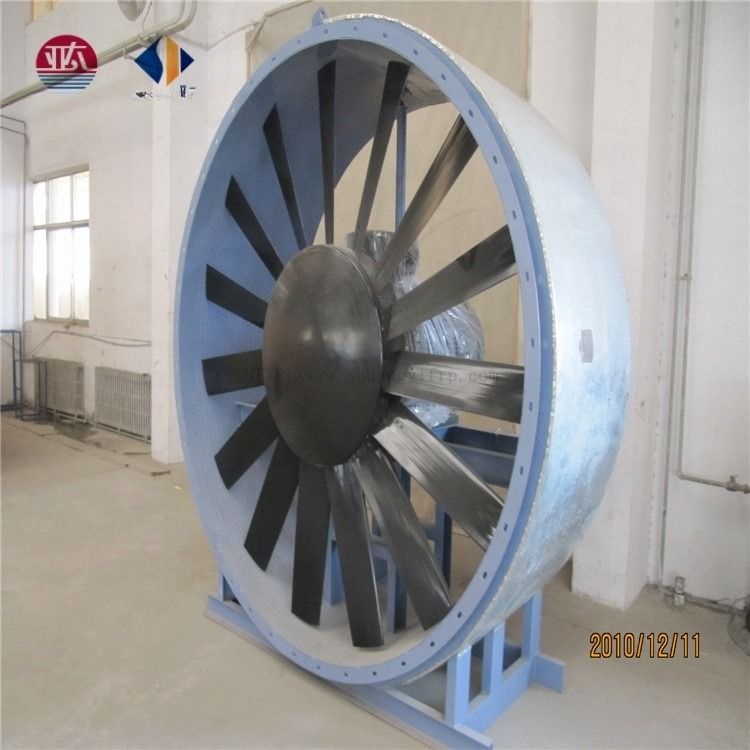

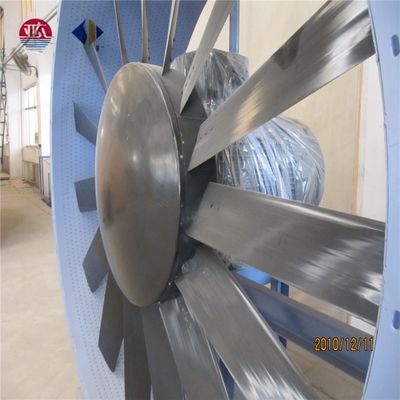

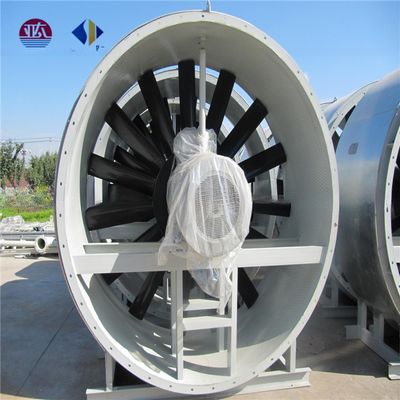

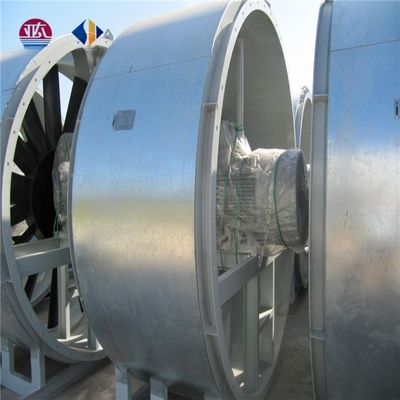

Explosion proof extractor fan,ventilation exhaust fan
1. Simple structure, lower noise, low-pressure .
2. Difference impeller angle can be choose based your needed, 15Deg, 20 Deg , 25 Deg ,30 Deg, 35 Deg .
3.100% performance test before shipping.
4.Total 13 difference types based the impeller dimension, including including 280mm dia, 315mm dia, 355mm dia, 400mm dia, 450mm dia, 500mm dia, 560mm dia, 630mm dia, 710mm dia, 800mm dia, 900mm dia, 1000mm dia, 1120mm dia.
5.Impellers were drove directly by the power-generating.
The motor of ZHT-35 axial-flow fan is improved, the loss of air flow is reduced. Therefore, the efficiency of the fans is 89.5% higher when the noise is much lower. We strengthen the welding of blades and impeller so that the blades can avoid breaking. TheZHT-35 series axial fan is divided into 5 kinds of blade installation angle such as 15°,20°,25°,30°, 35°.
6) The FRP Axial fan can be apply to:
ZHT-35 type Axial Fan is widely used in factories, warehouses, offices, residential houses to ventilate or enhance heat dissipation. It is also series installed in longer pipe line.
The air transferred shall not be strong corrosive, not with notable dust, the temperature of the air should not exceed 60°C.
The parameter and model choose list of the FRP axial fan :
| Model(No.) | Motor Power (Kw) | Adjustable Angle Blade | Rotation Speed (r/min) | Volume Flow (m3/h) | Total Pressure(Pa) |
| 2.8 | 0.12~0.37 | 15°,20°, 25°,30°, 35° | 2900 | 1224~2778 | 128~186 |
| 0.025~0.04 | 1450 | 613~1392 | 32~46.6 |
| 3.15 | 0.18~0.55 | 15°,20°, 25°,30°, 35°. | 2900 | 1944~4155 | 170.1~247 |
| 0.025~0.09 | 1450 | 972~2078 | 42.5~61.7 |
| 3.55 | 0.37~1.1 | 15°,20°, 25°,30°, 35°. | 2900 | 2783~5951 | 216.1~313.6 |
| 0.04~0.12 | 1450 | 1394~2981 | 54~78.4 |
| 4 | 0.75~2.2 | 15°,20°, 25°,30°, 35°. | 2900 | 3980~8500 | 274.3~398.2 |
| 0.09~0.25 | 1450 | 1993~4261 | 68.6~99.5 |
| 4.5 | 0.12~0.37 | 15°,20°, 25°,30°, 35°. | 1450 | 2838~6067 | 86.8~126 |
| 5 | 0.25~0.75 | 15°,20°, 25°,30°, 35°. | 1450 | 4289~8712 | 112.6~164.6 |
| 0.37 | 960 | 2839~5768 | 49.1~71.8 |
| 5.6 | 0.37~1.1 | 15°,20°, 25°,30°, 35° | 1450 | 6025~12239 | 140.9~206 |
| 0.37 | 960 | 3989~8103 | 61.8~90.3 |
| 6.3 | 0.75~2.2 | 15°,20°, 25°,30°, 35° | 1450 | 8579~17426 | 178.3~260.7 |
| 0.37~0.75 | 960 | 5680~11534 | 78.2~114.3 |
| 7.1 | 1.5~4 | 15°,20°, 25°,30°, 35° | 1450 | 12280~24944 | 226.5~311.1 |
| 0.75~1.1 | 960 | 8130~16514 | 99.3~145.2 |
| 8 | 3~7.5 | 15°,20°, 25°,30°, 35° | 1450 | 17567~35682 | 287.6~420.3 |
| 0.75~2.2 | 960 | 11630~23624 | 126.1~184.2 |
| 9 | 1.5~4 | 15°,20°, 25°,30°, 35° | 960 | 16560~33937 | 159.5~233.2 |
| 10 | 2.2~7.5 | 15°,20°, 25°,30°, 35° | 960 | 22716~46141 | 197~287.9 |
| 11.2 | 4~11 | 15°,20°, 25°,30°, 35° | 960 | 31914~64825 | 247~361.1 |
