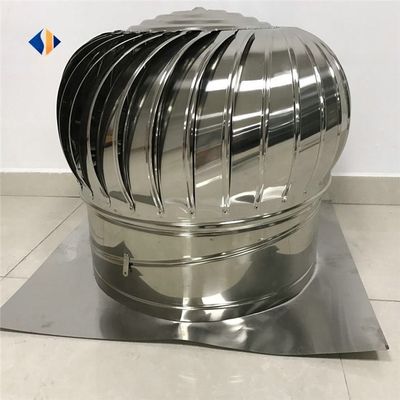

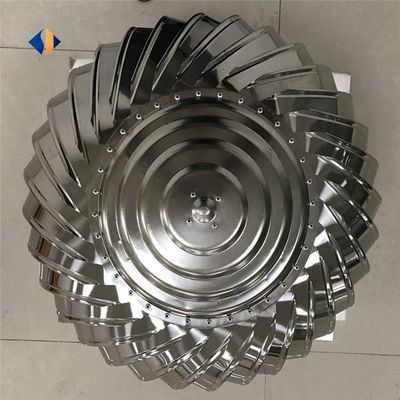

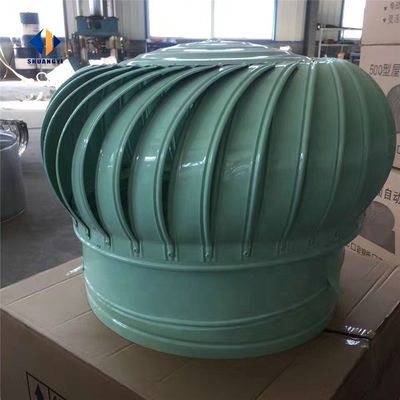

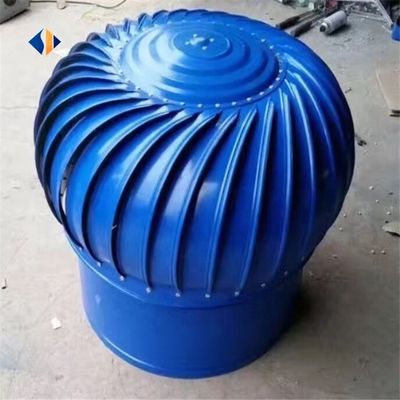

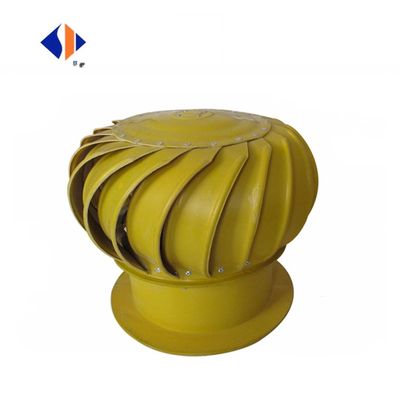

Stainless steel/FRP Material Roof Turbo Fan
Non Power Roof Turbine Fans,Roof Ventilators,Roof Ventilations Fans,Roof Extraction Fans,Stainless Steel Roof Turbine Fans,FRP Roof Turbine Fans :
Specifications / structure
1.Material: made of stainless steel or FRP by stretching forming, attractive appearance, no rust,
2. Bearing: wholel sealing bearing, which can ensure it operates smoothly and constantly.
3. Special central shaft design, high-class lubricating bearing system: preventing turbine blades
rotating at high speed from deformation, and extending the service life.
4, Inside support frame: cast iron/FRP
Advantages
1, Automatically running. wind drive. One time investment, no anymore cost.
2. No operating cost, no electricity consumption, environmental protection, energy-saving.
3. No need maintenance, long life working.
4. Light weight, strong and durable construction.
5. Weather resistance, self-cleanness, high revolving sensitivity and high air venting efficiency.
6. Easy installation:.installation position: flat roof, pitched roof, concrete roof and contour plate of
various industrial plants.
7, waterproof efficiency may reach 100%.
Function:
1) Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.
2) Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.
3) Reduce air conditioning load, increasing the cooling effect.
Widely used in these places
1) Ware house;
2) Factories and workshops (such as paper mill, galvanized products producing factories,
painting factories);
3) Garage and other buildings which need air ventilate.
Parameter:
|
Type
|
Air Vent Dia
(mm)
|
Air Capacity
(m3/h)
|
Weight
(kg)
|
|
SY-100
|
100
|
280-400
|
1.2
|
|
SY-160
|
160
|
500-700
|
2.1
|
|
SY-200
|
200
|
800-1000
|
3.0
|
|
SY-300
|
300
|
1200-1450
|
3.5
|
|
SY-400
|
400
|
1600-1850
|
4.5
|
|
SY-500
|
500
|
2520-2950
|
6.0
|
|
SY-600
|
600
|
3600-3850
|
8.0
|
|
SY-700
|
700
|
4600-5690
|
12
|
|
SY-800
|
800
|
6500-7250
|
13
|
|
SY-9001
|
900
|
7600-8850
|
15
|
|
SY-10001
|
1000
|
9890-11600
|
17
|
|
SY-1100
|
1100
|
12200-13200
|
20
|
|
SY-1200
|
1200 |
13950-14850 |
22 |
My customer's paper mill use 600mm unpoered fan 1000sets
Roof Ventilation Fan,Wind-driven Turbine Ventilator,Non Power Turbo Fan for Warehouse/Factory/Workshop
