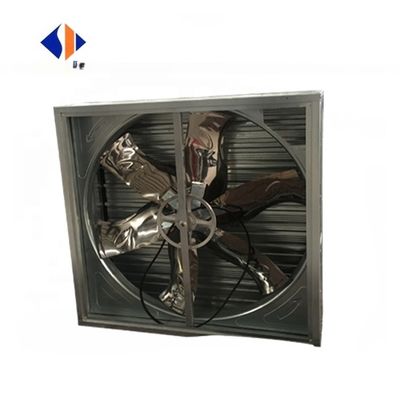

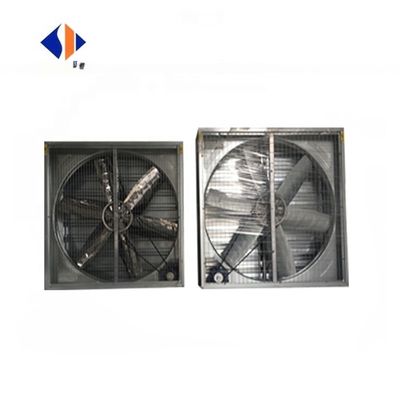

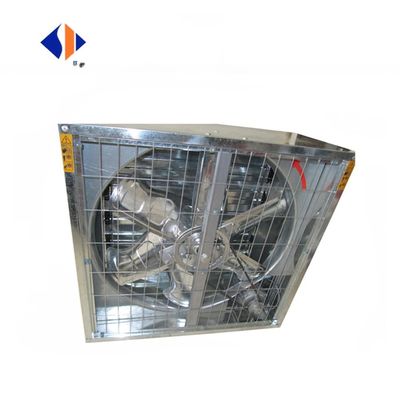

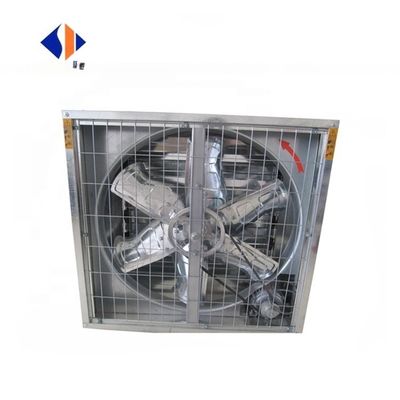

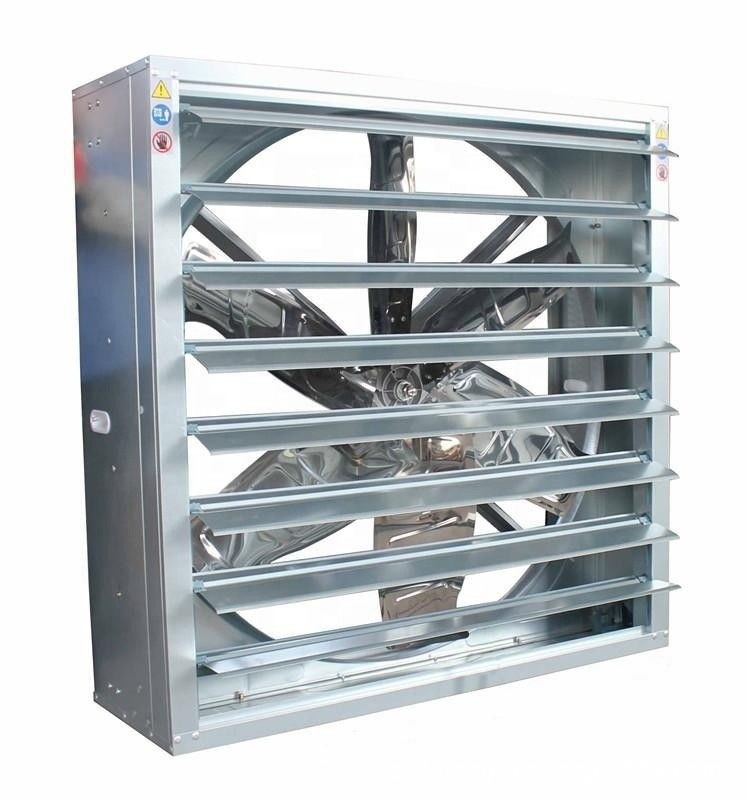

Wall mounted ventilation system air fans
Working Principal:
Use the principle of negative pressure cross-ventilation, to bring the fresh air in from the opposite of the installation position——door or window naturally, and extract the indoor hot gas rapidly.Any improper ventilation problem can be solved. The cooling and ventilation efficiency can reach as high as 90%-97%.
1, Frame: frames are made of galvanized board, thickness 1.0mm, galvanizing layer 180g/square meter.
2, Blade: 6 pieces, material 430/201 stainless steel, mirror face.
3, Impeller, casting aluminum alloy impeller.
4, Bearing of impeller :permanently sealed bearing, size 633313.
5, Venture: galvanized board, thickness 1.0mm.
6, Blade tip clearance: 25mm, mirroe face.
7, Inlet wind protecting net: spraying paint steel wire, thickness 2.8mm.
8, Electrical motor: aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, 4-pole speed, 1410r/m, IP55, class F, efficiency 90%, top/foot mounted,
9, Motor bearing, :national grade.
10, Belt: V-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

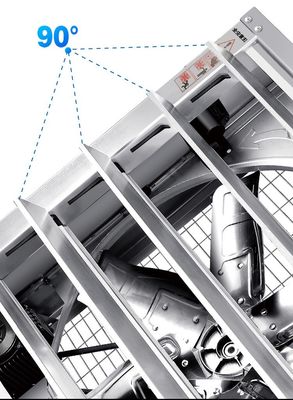

11, Shutters, galvanized board, 0.8 mm thickness while the middle piece thickness 1.0mm. Galvanizing layer ,120g/square meter.
12, Opening system, nylon material, brown color and black color.
13, Rivets: aluminum alloy and stainless steel rivets.
14, Cable: 1 meter long, strong robber wire.
Application:
Poultry/ Greenhouse/ Farm / Kitchen
Our Services
We will respond you within 24 hours. With tech support and selling team. Any questions,pls contact us inmediately!
Company Information
Jinan Shuangyi Environment Engineering Co., Ltd. (Shuangyi) integrates science and technology, engineering and trade together. Our main products are cooling towers, FRP products, blowers, water tanks, ventilators, ventilator pipelines, fireproofing valves, fume extract valves, lab facilities, fans, FRP lab facilities, medicine lockers, vessel lockers, reagent storage racks, enwind pipes, enwind tanks, FRP pipes, FRP tanks, FRP retainers, FRP pantiles, day lighting covers, rot proof facilities, bodyworks, auto-coverings, auto fittings, battery cars, mobile machinery shop fittings, engine room covers, hubcaps, air deflectors, architectural decorate materials, pultrusion-wood, furniture, FRP products, RTM products, garbage bins, textile machinery, air conditioning units, air-conditioners, wind screen machines, central air-conditioning and engineering machines and composite materials.
FAQ
1.Main product?
Water tank,Water chiller,Cooling tower,Ventilator fans,Lab facility,etc.
2.About your company?
Set up in 1984.Ten years of International trade experience.
